Description

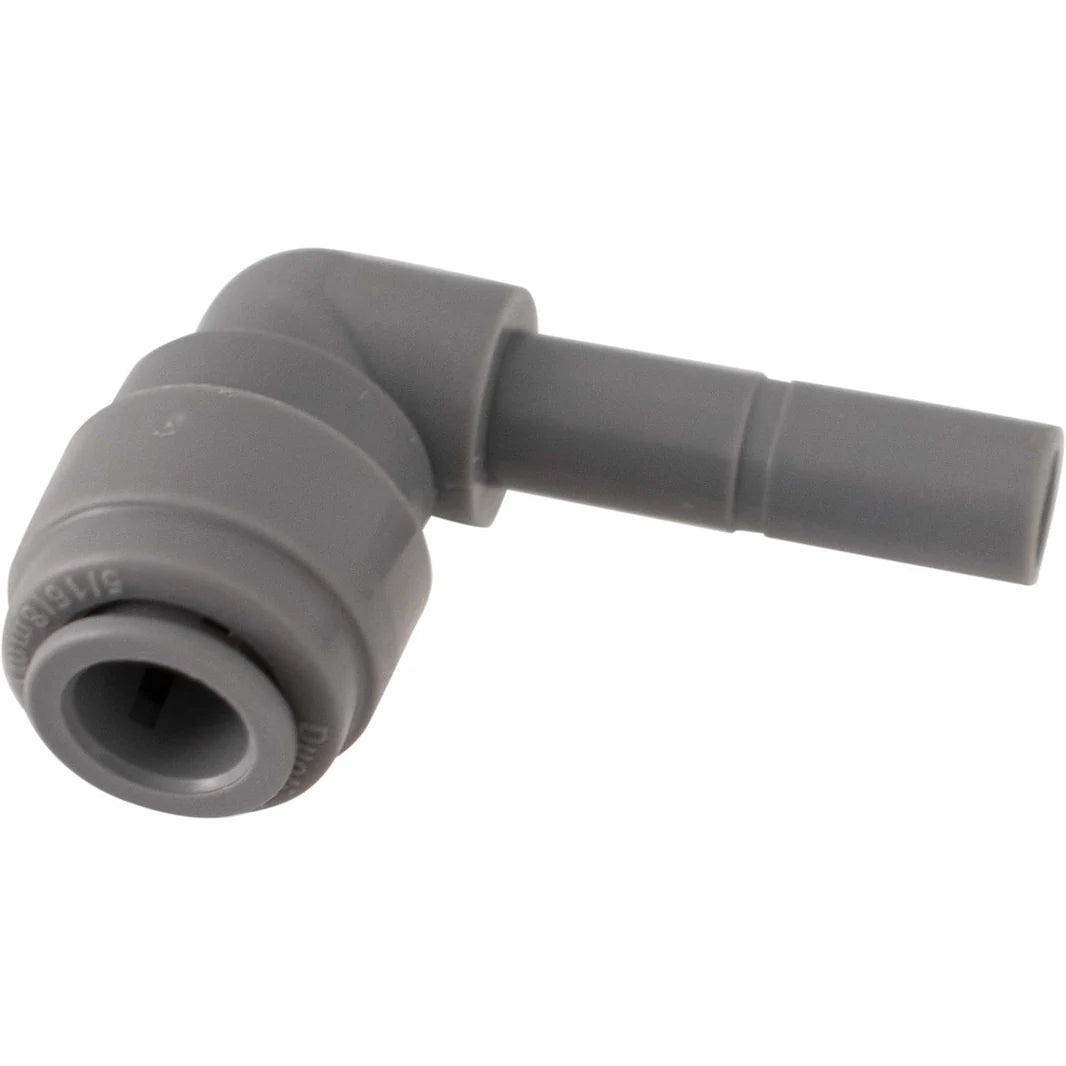

This Duotight to Male Elbow fitting can be used to route tubing connecting to 8 mm Duotight Ball Lock QDs. This is a great way to keep tubing organized and out of the way in your kegerator. Compatible with EVABarrier 8 mm OD Tubing (D1717 & D1718).
Duotight fittings are high-quality push-in fittings that seal tight and offer superior sealing capacity due to the double O-ring sealing design.
High Performance Double O-Ring Design:
The secret to Duotight’s superior sealing performance comes from the fact that they use not one, but two high-quality EPDM O-rings. The double O-ring means they have literally twice the sealing surface when compared with other push-in fittings. This makes them more reliable and significantly reduces the chance of leakage.
The double O-ring system also means that tubing can be bent at a much tighter radius without causing leaking issues, which can be an issue with other fittings. This combination of factors makes Duotight the most reliable push-in fittings on the market.
EPDM offers excellent chemical resistance for a longer life span. When compared with silicone and vinyl, EPDM has much better gas transmission rates, better wear resistance, and is BPA-free.
No Clamps Necessary!
We recommend cutting your tubing straight, not on an angle, to ensure the line forms a complete seal. To remove the fitting simply push in the collet and the hose can be removed.
Features:
Insert tubing and firmly push to connect
Easily release tubing by pushing in the collet
Suitable for both gas & beverage applications
Made from food-grade acetal plastic
Double O-rings made from highly chemical resistant EPDM
Locking teeth made from stainless steel
Pressure rated to 150 psi
Temperature rated to 212°F (100°C)
